We offer a wide range of train waggons for different needs. If there is something you can't find in the summary, please get in touch!

Habbiins-16 63 pallets/42 pallets piece

Loading capacity/internal dimentions:

Height of wagon floor over rail Opening sliding doors Lastebredde midtportal
1887 mm 2840 mm 2840 mm
2000 mm 2840 mm 2727 mm
2042 mm 2840 mm 2668 mm
2100 mm 2800 mm 2628 mm
2150 mm 2750 mm 2578 mm
2200 mm 2685 mm 2528 mm
2250 mm 2634 mm 2478 mm
2300 mm 2586 mm 2428 mm
2350 mm 2536 mm 2378 mm
2399 mm 2486 mm 2329 mm
2444 mm 2442 mm 2240 mm
2500 mm 2331 mm 2130 mm
2550 mm 2232 mm 2031 mm
2600 mm 2133 mm 1932 mm
2650 mm 2034 mm 1834 mm
2686 mm 1964 mm 1763 mm
2700 mm 1936 mm 1686 mm
2749 mm 1838 mm 1418 mm
2800 mm 1564 mm 1142 mm
Vogn1

loading unit:

Profile G1
length over buffer 23.264 mm
loading length 22.000 mm
loading width 2.840 mm
loading area 62,5 m2
loading volume 167 m3
Sliding door width 10.808 mm
Sliding door height 2.800 mm
Maksimum weight 64.0 tonnes
Capacity euro pallet 63 pallets piece
Capacity sea pallet 42 pallets piece

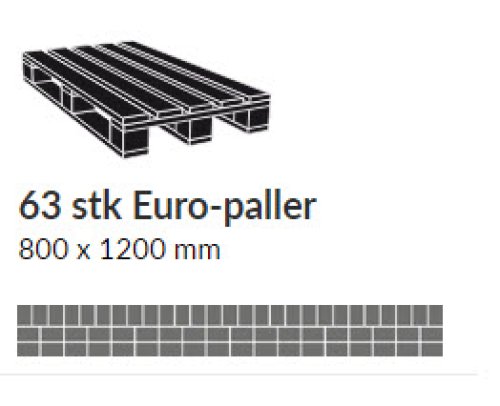

europall-63b

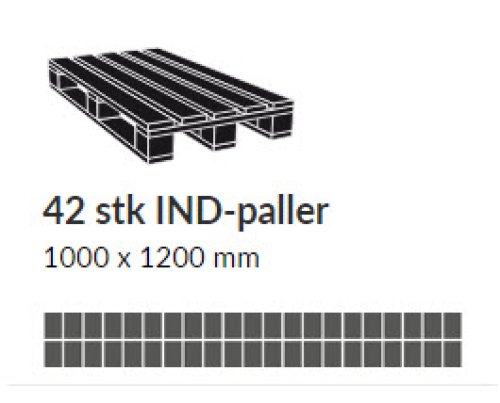

europall-42
Laaiis NLD/NLE 72 pallets/60 pallets piece

Loading capacity/internal dimentions:

Height of wagon floor over rail Loading width
  3030 mm
1900 mm 3030 mm
1950 mm 3030 mm
2000 mm 3030 mm
2050 mm 3030 mm
2070 mm 3030 mm
2100 mm 2999 mm
2150 mm 2947 mm
2200 mm 2896 mm
2250 mm 2844 mm
2300 mm 2793 mm
2350 mm 2741 mm
2400 mm 2689 mm
2436 mm 2652 mm
2450 mm 2638 mm
2477 mm 2610 mm
2500 mm 2564 mm
2550 mm 2465 mm
2600 mm 2366 mm
2650 mm 2266 mm
2700 mm 2167 mm
2750 mm 2068 mm
2779 mm 2010 mm
2794 mm 1953 mm
2800 mm 1931 mm
2850 mm 1742 mm
2885 mm 1610 mm
2900 mm 1553 mm
2950 mm 1364 mm
3000 mm 1176 mm
3020 mm 1100 mm
Vogn2

loading unit:

Profile G1
length over buffer 27.000 mm
loading length 2x 12.540 mm
loading width 3.030 mm
loading area 2 x 38 m2
loading volume 2 x 106 m3
Sliding door width 5.940 mm
Sliding door height 3.020 mm
Maksimum weight 63.5 tonnes
Capacity euro pallet 72 pallets piece
Capacity sea pallet 60 pallets piece

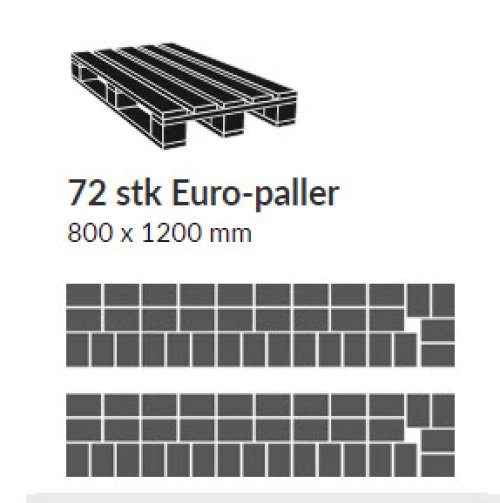

europall-72

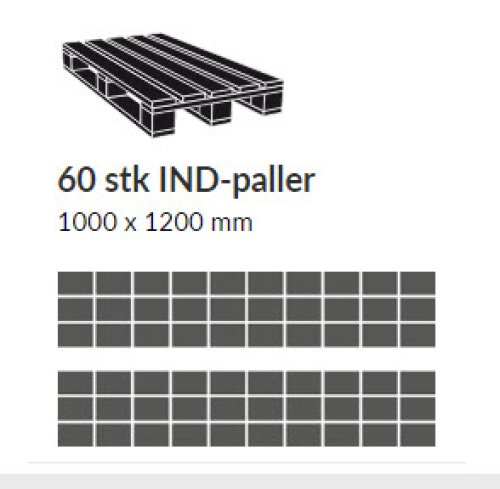

europall-60
Laaiis NLS 72 pallets/60 pallets piece

Loading capacity/internal dimentions:

Height of wagon floor over rail Loading width
1882 mm 3030 mm
1900 mm 3030 mm
1950 mm 3030 mm
2000 mm 3030 mm
2045 mm 3030 mm
2050 mm 3025 mm
2100 mm 2977 mm
2150 mm 2928 mm
2200 mm 2879 mm
2250 mm 2831 mm
2300 mm 2782 mm
2350 mm 2733 mm
2400 mm 2685 mm
2436 mm 2650 mm
2450 mm 2636 mm
2477 mm 2610 mm
2500 mm 2564 mm
2550 mm 2465 mm
2600 mm 2366 mm
2650 mm 2266 mm
2700 mm 2167 mm
2750 mm 2068 mm
2779 mm 2010 mm
2794 mm 1953 mm
2800 mm 1931 mm
2850 mm 1742 mm
2885 mm 1610 mm
2900 mm 1553 mm
2950 mm 1364 mm
3000 mm 1176 mm
3020 mm 1100 mm
Vogn3

loading unit:

Profile G1
length over buffer 27.000 mm
loading length 2x 12.540 mm
loading width 3.030 mm
loading area 2x 38 m3
loading volume 2 x 106 m3
Sliding door width 5.940 mm
Sliding door height 3.020 mm
Maksimum weight 63,5 tonnes
Capacity euro pallet 72 pallets piece
Capacity sea pallet 60 pallets piece
europall-72
europall-60
